Azure Cloud Architecture & GitHub Actions CI/CD Platform

Overview

Designed a secure Azure application platform and automated software delivery workflows using GitHub Actions, enabling reliable deployment of cloud-hosted applications and automated desktop application releases across Windows, Linux, and macOS.

The project focused on improving deployment consistency, reducing manual release effort, and increasing visibility into application health and performance. The real engineering story here is release automation — taking a manual, per-OS process and turning it into a single, repeatable pipeline:

Manual Deployments
        ↓
Azure Platform Design
        ↓
GitHub Actions Automation
        ↓
Cross-Platform Release Pipeline
        ↓
Centralized Observability
        ↓
Reliable Software Delivery

Business challenge

The organization needed to support both web applications and desktop software releases while cutting manual operational effort. The pain points:

• Manual releases built and published by hand.
• Multiple OS targets with separate, inconsistent procedures.
• Inconsistent deployments across environments.
• Limited monitoring of application health and performance.
• Secret-management complexity spread across locations.

The goal was a secure cloud foundation plus an automated delivery lifecycle from source-code commit to production deployment and public software release.

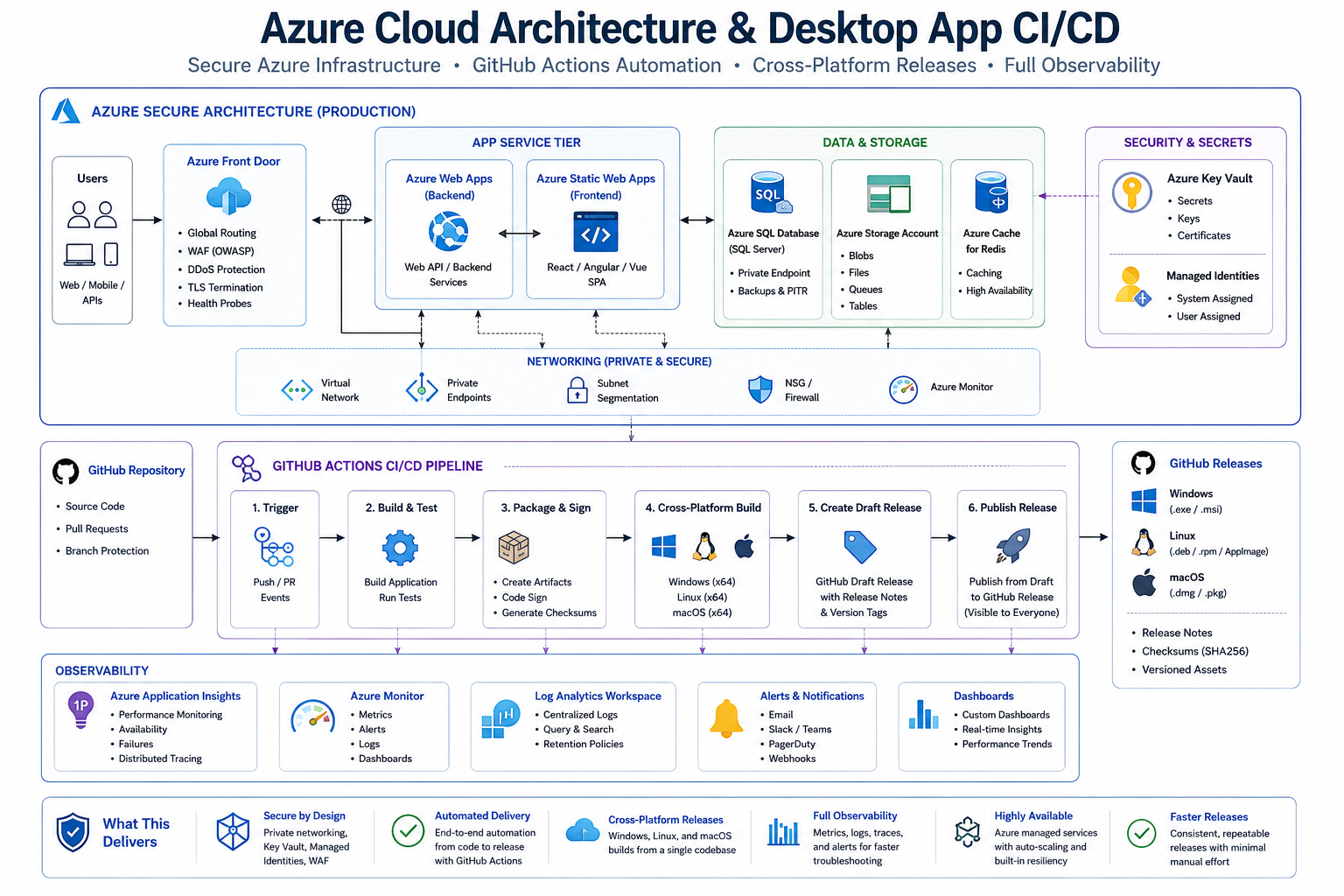

Architecture

The Azure environment was designed around security, scalability, and operational simplicity. Azure Front Door is the single secure entry point for user traffic; Static Web Apps host the frontend and Azure Web Apps host backend APIs, so each tier scales independently with minimal hosting overhead. Azure SQL Database holds relational data, Azure Cache for Redis keeps latency low, and Key Vault removes secrets from the deployment path entirely.

The architecture exists to keep public surface area small and operations simple — managed hosting and edge security instead of hand-built infrastructure, so the team’s effort goes into the product and its release pipeline rather than plumbing.

Security improvements

Identity & secrets

Centralized application secrets, database credentials, certificates, and API keys in Azure Key Vault, accessed at runtime through Managed Identities. This removed shared credentials, service passwords, and hard-coded secrets — applications authenticate to Azure services without anyone holding a key.

Networking

Built the platform on secure networking foundations — private networking, Private Endpoints, subnet segmentation, and Azure Front Door + WAF at the edge. The result restricts unnecessary access paths and keeps backend services off the public internet.

Release automation

This is the heart of the project. Rather than building and publishing desktop releases by hand for each operating system, the entire flow runs through GitHub Actions:

GitHub → GitHub Actions → Build → Package → Cross-Platform Builds → Draft Release → GitHub Release

Every code change automatically triggers validation, build, and packaging — eliminating manual release preparation and making releases consistent and repeatable.

Cross-platform builds

From a single codebase, the pipeline produces native packages for every supported operating system:

• Windows — EXE packages and MSI installers.
• Linux — DEB, RPM, and AppImage releases.
• macOS — DMG packages and PKG installers.

This standardized delivery across all platforms and removed the per-OS release-engineering toil.

GitHub Releases & quality gate

Release management is automated through GitHub Releases: versioned artifacts, generated checksums, published release notes, and downloadable packages. Releases are first created as drafts — a validation checkpoint before public publication — and only become publicly available once approved. That draft-then-publish step adds a deliberate quality gate to an otherwise fully automated flow.

Observability

Implemented centralized monitoring so the team can see and act on what the platform is doing. Application Insights provides application performance monitoring, distributed tracing, dependency tracking, and failure analysis; Azure Monitor handles metrics, infrastructure monitoring, and alerting; and a Log Analytics Workspace centralizes logs for querying, incident investigation, and long-term retention. Dashboards and proactive alerts surface application health, performance bottlenecks, infrastructure utilization, and availability before issues reach users — significantly improving troubleshooting efficiency.

What I led

• Cloud architecture — secure Azure hosting architecture, networking and identity controls, scalable frontend/backend hosting.
• DevOps automation — GitHub Actions CI/CD workflows, automated build and release processes, deployment automation for Azure-hosted apps.
• Release engineering — multi-platform release automation, GitHub draft-release workflows, standardized artifact generation.
• Observability — Application Insights and Azure Monitor configuration, centralized logging and alerting, improved operational visibility.

Outcome

Delivered a secure Azure cloud platform and a fully automated software-delivery ecosystem supporting both web applications and desktop software distribution. Key outcomes:

• Automated deployments to Azure Static Web Apps and Azure Web Apps.
• Automated Windows, Linux, and macOS release generation.
• Consistent, repeatable GitHub-based release workflows.
• Reduced manual release-engineering effort.
• Faster troubleshooting and improved platform visibility.
• Stronger security through Key Vault, Managed Identities, and private networking.

The platform transformed software delivery from a largely manual process into a repeatable, secure, and automated release pipeline — while maintaining a secure and highly available Azure application environment.
